• 5-Micron Pleated Sediment Filter

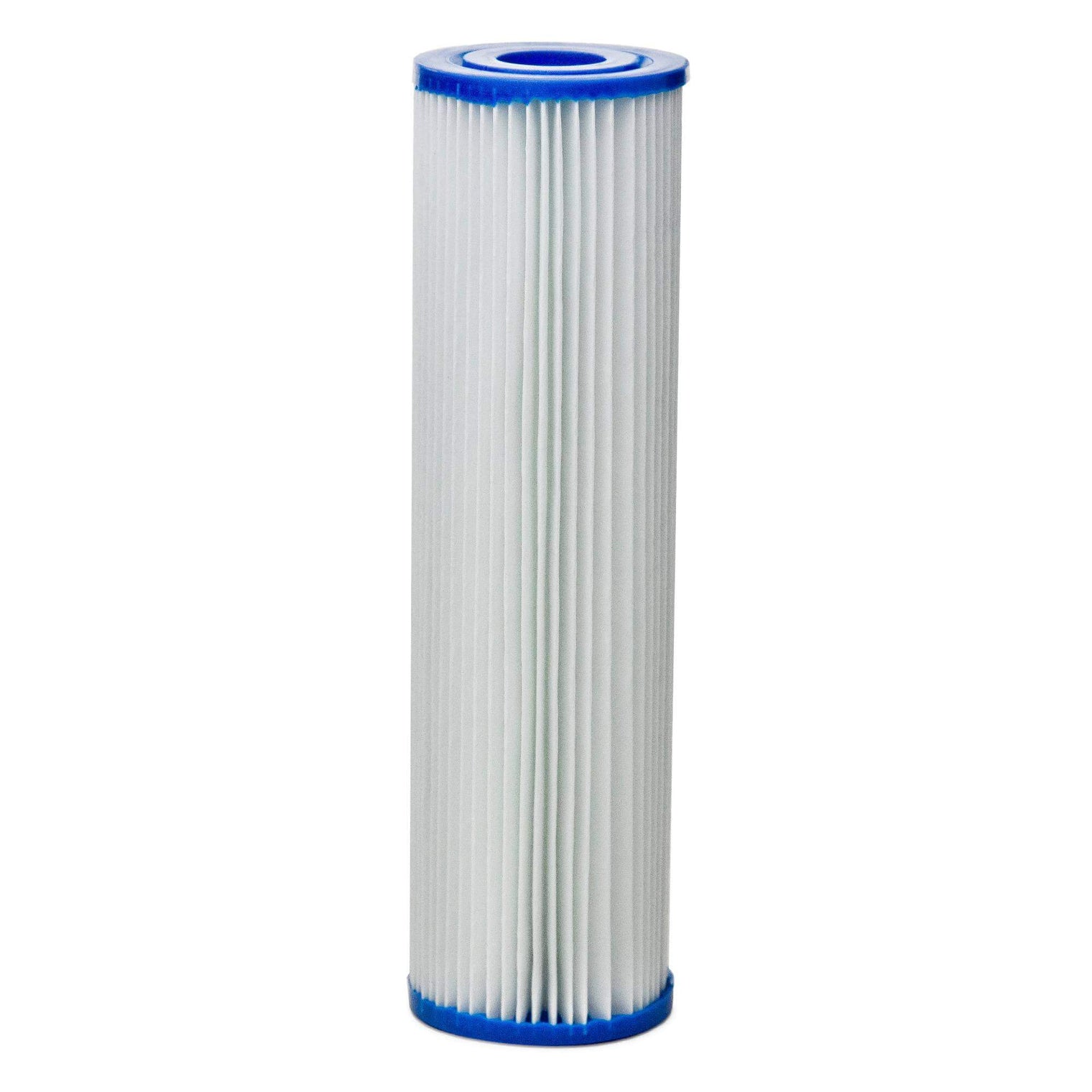

5-Micron Pleated Sediment Filter

SKU: CB-25-1020
$12.99

A high-capacity sediment filter designed to reduce dirt, rust, sand, silt, and other suspended particles from your water. The pleated design provides increased surface area for effective sediment capture while helping maintain a strong flow rate.
Overview

The 5-Micron Pleated Sediment Filter is designed for use as the first stage in a multi-stage water filtration system. It captures visible sediment and suspended particles before they can reach the system’s more specialized filtration media.

Its pleated construction provides greater filtration surface area than many traditional spun sediment cartridges. This allows the filter to hold more sediment while supporting a steady water flow, making it especially useful for homes and buildings with noticeable dirt, rust, sand, or recurring sediment in the water.

Using a dedicated sediment filter as the first stage can also help protect subsequent carbon, specialty resin, and contaminant-reduction cartridges from premature clogging.
Features
  • 5-micron nominal filtration
  • Reduces dirt, rust, sand, silt, and suspended sediment
  • Pleated design provides increased filtration surface area
  • High dirt-holding capacity
  • Helps maintain flow
  • Protects downstream filtration cartridges from sediment buildup
  • Suitable for municipal and well-water applications
  • Fits compatible standard 10-inch filter housings
  • Designed for cold-water filtration systems

What It Filters

This cartridge is designed for the mechanical reduction of suspended particles, including:

  • Dirt
  • Rust particles
  • Sand
  • Silt
  • Scale particles
  • Other visible and suspended sediment

This is a sediment filter and is not intended to reduce chlorine, chloramines, fluoride, heavy metals, PFAS, microorganisms, or dissolved contaminants on its own. It should be paired with the appropriate contaminant-reduction cartridges when broader filtration is needed.
Details
  • Filter type:Pleated sediment cartridge
  • Micron rating:5 micron, nominal
  • Filter media:Pleated polyester-based media
  • Dimensions:Approximately 9¾ inches long × 2¾ inches wide
  • Recommended flow rate:Approximately 4–6 gallons per minute
  • Maximum temperature:140°F
  • Configuration:Double open end
  • Use:Cold-water filtration
  • Housing compatibility:Compatible standard 10-inch housings.
